[Teknynja] was looking for a way to control several discrete AC-powered devices using a microcontroller, and while he did consider the Powerswitch tail 2 from Adafruit, handling 5 devices would get pretty expensive. Rather than buying a complete off the shelf solution, he decided to build his own 5-way switched outlet.

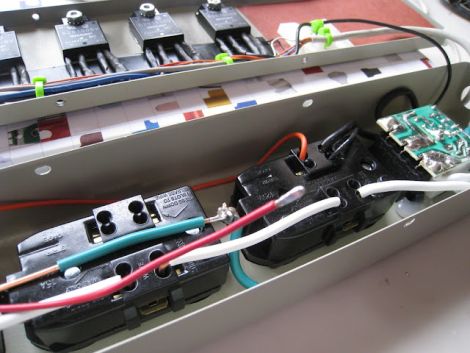

He picked up a sturdy metal power strip from a local hardware store along with some Sharp S201S06V relays he ordered online. After test fitting his relays inside the power strip’s chassis, he wired up 5 of the 6 outlets through them to allow for switching via a microcontroller. He configured the 6th outlet to be live at all times, providing a power source for the control system he planned on using to switch the other receptacles.
[Teknynja] pulled the connector from an old PS/2 mouse for use as a control wire, connecting one wire to each of the relays. He says that the strip is working quite well, and after a few months of use it is holding up nicely.
