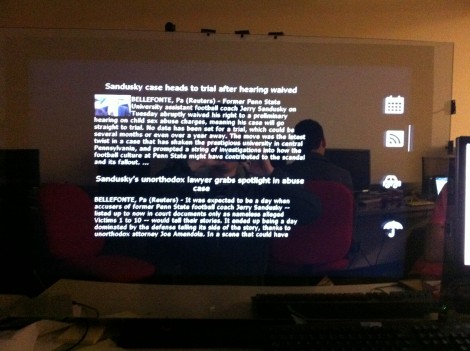

This mirror has a large monitor behind it which can be operated using hand gestures. It’s the result of a team effort from [Daniel Burnham], [Anuj Patel], and [Sam Bell] to build a web-enabled mirror for their ECE 4180 class at the Georgia Institute of Technology.

So far they’ve implemented four widget for the system. You can see the icons which activate each in the column to the right of the mirror. From top to bottom they are Calendar, News, Traffic, and Weather. The video after the break shows the gestures used to control the display. First select the widget by holding your hand over the appropriate icon. Next, bring that widget to the main display area by swiping from right to left along the top of the mirror.

Hardware details are shared more freely in their presentation slides (PDF). A sonar distance sensor activated the device when a user is close enough to the screen. Seven IR reflectance sensors detect a hand placed in front of them. We like this input method, as it keep the ‘display’ area finger-print free. But we wonder if the IR sensors could be placed behind the glass instead of beside it?

[via: http://www.hackaday.com]

Hack a Day alum [Will O’Brien] recently upgraded his phone, and was trying to find a use for his old one. He always wanted a remote starter for his Subaru Outback, but wasn’t interested in paying for an off the shelf kit. Since he had this old smartphone kicking around, he thought that it would be the perfect starting point for an SMS-triggered remote start system.

He started off by jailbreaking his phone, which allows him to run some Perl scripts that are used to listen for incoming texts. Using a PodBreakout mini from Sparkfun he connected the phone to an Arduino, which is responsible for triggering the car’s ignition. Now, a simple text message containing the start command and a password can start his car from a anywhere in the world.

While [Will] is quite happy with his setup he already has improvements in mind, including a way for the Arduino to send a message back to him via SMS confirming that the car has been successfully started. He’s thinking about putting together a kit for others looking to add the same functionality to their own car, so be sure to check his site periodically for project updates.

[via: http://www.hackaday.com]

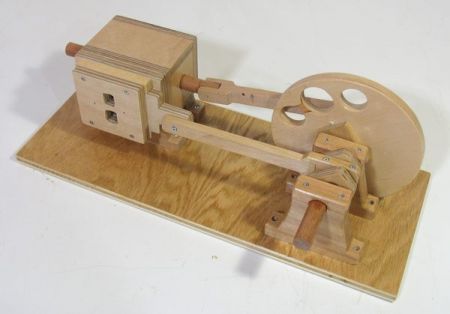

You may have seen an air powered engine at some point, but most are made out of some sort of metal. This engine, however, is made entirely out of wood (and fasteners). One might wonder how a design like this was conceived, but this may be explained by [Woodgears.ca's] tagline: “An engineer’s approach to woodworking.”It should also be noted that this is actually [Matthias'] sequel to“Wooden Air Engine 1.“

The engine itself is a neat device in that it uses power from compressed air (or suction from a vacuum cleaner) to make the piston and connecting rod cycle back and forth to spin a flywheel.The other connecting rod is used to switch which side of the “clyinder” received air pressure (or vacuum).A really neat mechanical assembly, and one that took a good amount of skill to make out of wood.Check out the video after the break to see how it all works!

If you’d like your woodworking to be more automatic, check out this post about how to set up a CNC router for your personal use.

[via: http://www.hackaday.com]

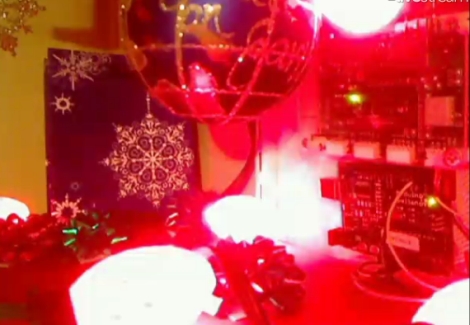

They say that the holidays are a time to gather with others, which usually translates into spending time with friends and family. The folks at ioBridge Labs thought that while friends and family certainly are a big part of the holidays, it would be pretty cool to gather together flocks of strangers by using the Internet to synchronize their Christmas lights.

Participation in CheerLights is pretty easy, requiring little more than an Internet connection, some GE G-35 Color Effects lights, an Arduino, and an ioBridge. While those are the recommended components, an Arduino Ethernet shield will handle networking just as well. There really are no restrictions when it comes to hardware, so if you are so inclined, it should be relatively easy to roll your own display using simple RGB LEDs and a µC of your choosing.

The colors are dictated by the group’s Twitter feed, which can be found at http://twitter.com/#!/@cheerlights. Whenever a message is sent to @cheerlights along with a color, all of the light displays listening in will change simultaneously.

We really like the idea, and think it would be pretty cool to see this sort of program rolled out on a neighborhood or street-wide level, so you could see dozens of strings changing colors all at once.

If you’re interested in checking out CheerLights’ current color, be sure to take a gander at their live stream here.

[via BuildLounge]

[via: http://www.hackaday.com]

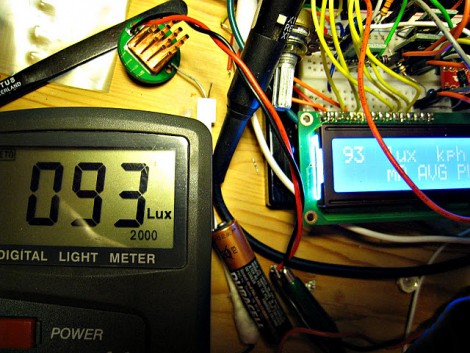

[Minisystem] has a thing for dynamo powered bike lights. He wanted to measure how well his latest is working, but just logging the current flow through the LEDs wasn’t enough for him. He picked up a cheap Lux meter and hacked into the circuit to log measurements while he rides.

He started by cracking open the case to see what the meter held inside. There’s a Texas Instruments Op-Amp that connects to the light sensor. The datasheet for the part didn’t help much, but [Minisystem] did find that the current output on one of the pins changes with light intensity. Further testing led him to discover that the signal is a multiple of 10 for what is shown on the Lux meter’s readout. All he needs to do is take regular measurement of this current and save that data.

To do this, he grabbed his trusty Arduino and made a connection between one of its analog inputs and the op-amp pin. It should be easy enough to dump measurements into the Arduino’s own EEPROM, or use an external storage chip or SD card.

[Thanks Jason]

[via: http://www.hackaday.com]
